Steps to make a .hpkg file for my games?

extrowerk · August 31, 2022, 8:59am

dotfiles and dotfolders were always a hack.
Using them on Haiku is not welcomed.

DigitalBox · September 6, 2024, 5:02pm

I’m using this topic to deal with a github repo which is using --recursive to build the program.

It means all the modules used by this program will be the dependencies in the recipe file ?

Corresponding repo is : GitHub - niftools/nifskope: A git repository for nifskope.

If I understand correctly I need to check first all the dependencies and if one of it doesn’t exist in haikuports, I need to propose a port of this dependency ? Because the first dependency which I think doesn’t exist on Haiki is the GLI header lib : GitHub - g-truc/gli: OpenGL Image (GLI)

Thanks

Begasus · September 7, 2024, 5:35am

If the project can’t handle system libraries you could use SOURCE_URI_2 like it’s done here:

github.com

haikuports/haikuports/blob/master/sys-devel/lemon/lemon-1.0~src.recipe#L12



          DESCRIPTION="The SQL language parser for SQLite is generated using a \
          code-generator program called \"Lemon\". The Lemon program reads a grammar \
          of the input language and emits C-code to implement a parser for that language."
          HOMEPAGE="https://www.sqlite.org/lemon.html"
          COPYRIGHT="Public Domain"
          LICENSE="SQLite"
          REVISION="1"
          SOURCE_URI="https://sqlite.org/src/raw/tool/lemon.c?name=33892e2a243865f73e6c6e7cecce3c6eb4bb95db4a3d9d86d146c8064feb92fd#noarchive"
          SOURCE_FILENAME="lemon.c"
          CHECKSUM_SHA256="573ef688d5a18fc0cfff2a3d6efcfc693e4d059328da631dabbfcdfa742ba6ee"
          SOURCE_URI_2="https://sqlite.org/src/doc/trunk/doc/lemon.html#noarchive"
          SOURCE_FILENAME_2="lemon.html"
          CHECKSUM_SHA256_2="91fdc5a8178c401d6ebf358c661609fbce0c5617e0edb19af4e4f47c29f9ef29"
          SOURCE_URI_3="https://sqlite.org/src/raw/tool/lempar.c?name=bf7db78e7213f1d51516710483eab506fd52bf632c7abfb3e2e9b885c90c03e1#noarchive"
          SOURCE_FILENAME_3="lempar.c"
          CHECKSUM_SHA256_3="16cffecd770fe7c1f5bc576f45471181d5e28f92134d451300c6e2b8356633ad"

          SOURCE_DIR=""
          SOURCE_DIR_2=""
          SOURCE_DIR_3=""

Or you could try to package GLI seperately and see if the project “can” handle system libraries.

DigitalBox · September 7, 2024, 9:05am

Ok I will try to add the “gli” to the system library (even if this library is a header only lib)

Begasus · September 7, 2024, 9:08am

If you can include it in the project source it’s an option too, just needs to find the header then (haven’t looked at the source)

nephele · September 7, 2024, 9:23am

a recursive clone clones submodules with the repo, and the submodules of submodules.

Since haikuporter does not use git for cloning anything, and instead only downloads archives you have to either download the archives of the child repos manually, or ask the author to include it in their source distribution.

DigitalBox · September 7, 2024, 9:25am

Ah yes I’ve added SOURCE_URI_2=“https://github.com/g-truc/gli/archive/refs/tags/0.8.2.0.tar.gz”, however the include path is now not found :

./sources-2/gli-0.8.2.0/external/glm/test/external/gli/gli.hpp

where my project is in :
./sources/nifskope/

It means I need to adjust the INCLUDEPATH or to move the ./sources-2/gli directory : what is the best approach ?

Begasus · September 7, 2024, 9:31am

you could copy the file manually in BUILD() from $sourceDir2/… to $sourceDir/“where it can be found dir”

DigitalBox · September 7, 2024, 10:07am

Ok now the fun part :

I have gli 0.8.2.0 (year 2016…) which is raising compilations because it has a dependency with glm.

HaikuPorts propose glm 0.9.9.8 which is year 2020.
So it means I need to add to HaikuPorts an old version of glm so that gli can compile ok ?

Dependencies fun…

Begasus · September 7, 2024, 10:30am

Can’t it use current version? (know all about the libhell)

DigitalBox · September 7, 2024, 10:35am

I will double check but I think no as I have compilation error from GLI using GLM when compiling outside GitHub recursive option

Begasus · September 7, 2024, 10:37am

Did you add devel:glm in your recipe? (or installed glm)

DigitalBox · September 7, 2024, 11:19am

Yes glm is installed but I will double check that part (I remember of an error regarding glm devel in the recipe )

DigitalBox · September 8, 2024, 10:56am

Ok I have checked the recipe :

REQUIRES="
haiku$secondaryArchSuffix
lib:glm$secondaryArchSuffix
lib:qhull$secondaryArchSuffix
"

BUILD_REQUIRES="
haiku${secondaryArchSuffix}_devel
devel:glm$secondaryArchSuffix
"

I have removed the “glm” installation on my Haiku system in order to use the headers from “$sourceDir2/gli-0.8.2.0/gli/*” which are copied into “$sourceDir/src/”

I have also copied the gli and glm files as per below in the build :

BUILD()
{
cp -r $sourceDir2/gli-0.8.2.0/gli/* $sourceDir/src/
cp -r $sourceDir2/gli-0.8.2.0/external/* $sourceDir/src/
qmake
make $jobArgs
}

However I still have errors like below :

g++ -c -pipe -isystem …/nifskope/lib/qhull/src -isystem …/nifskope/lib/gli/gli -isystem …/nifskope/lib/gli/external -isystem …/nifskope/lib/zlib -O3 -mfpmath=sse -std=c++14 -msse2 -msse -std=gnu++1y -Wall -Wextra -fPIC -DQT_NO_DEBUG_OUTPUT -DQT_NO_CAST_FROM_BYTEARRAY -DQT_NO_URL_CAST_FROM_STRING -DQT_DISABLE_DEPRECATED_BEFORE=0x050300 -DNIFSKOPE_VERSION="2.0.dev7" -DNIFSKOPE_REVISION="d433cd7" -DLZ4_STATIC -DXXH_PRIVATE_API -DQT_NO_DEBUG -DQT_OPENGL_LIB -DQT_WIDGETS_LIB -DQT_GUI_LIB -DQT_XML_LIB -DQT_NETWORK_LIB -DQT_CORE_LIB -I. -Isrc -Ilib -Ilib/fsengine -Ilib/NvTriStrip -I/boot/system/develop/headers/QtOpenGL -I/boot/system/develop/headers/QtWidgets -I/boot/system/develop/headers/QtGui -I/boot/system/develop/headers/QtXml -I/boot/system/develop/headers/QtNetwork -I/boot/system/develop/headers/QtCore -IGeneratedFiles/.moc -IGeneratedFiles/.ui -I/boot/system/data/Qt5/mkspecs/haiku-g++ -o GeneratedFiles/.obj/material.o src/io/material.cpp
src/texture.hpp: In constructor ‘gli::texture::cache::cache(gli::texture::storage_type&, gli::texture::format_type, gli::texture::size_type, gli::texture::size_type, gli::texture::size_type, gli::texture::size_type, gli::texture::size_type, gli::texture::size_type)’:
src/texture.hpp:231:44: error: invalid ‘static_cast’ from type ‘glm::vec<3, int, glm::packed_highp>’ to type ‘std::size_t’ {aka ‘long unsigned int’}
231 | GLI_ASSERT(static_cast<size_t>(gli::levels(Storage.extent(0))) < this->ImageMemorySize.size());
| ^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

I continue to investigate in order to identify what’s wrong…

DigitalBox · September 10, 2024, 4:47pm

So far is my progress, I think I might have fixed the glm part due to a subfolder in the “external/glm” archive to copy from sources-2

However now libqhull is making headache to me
Any idea why libqhull is not recognized ?
I have tried to add the below line in the recipe but it’s not recognized :

BUILD_REQUIRES="
...
devel:libqhull$secondaryArchSuffix

Error: unable to resolve required packages for build for nifskope-2.0.dev7
Error:  Reason: failed to install package for devel:libqhull.
Error: *** Failed to find a match for "devel:libqhull": Name not found

Below is my entire recipe if it can helps :

SUMMARY="Tool for opening and editing NIF files"
DESCRIPTION="NifSkope is a tool for opening and editing the NetImmerse file format (NIF). \
NIF is used by video games such as Morrowind, Oblivion, Skyrim, Fallout 3/NV/4/76, Starfield, \
Civilization IV, and more."
HOMEPAGE="http://www.niftools.org/"
COPYRIGHT="2016-2023 NifTools project"
LICENSE="Nifskope"
REVISION="1"
SOURCE_URI="https://github.com/DigitalBox98/nifskope/archive/refs/tags/v2.0.dev7.tar.gz"
CHECKSUM_SHA256="e6a3648ebe1a88e9c6b5f477c20d3b4e7ec016410119c3246f2fea96787ab3dc"
SOURCE_URI_2="https://github.com/g-truc/gli/archive/refs/tags/0.8.2.0.tar.gz"
CHECKSUM_SHA256_2="9e7024c2df77c011eff4f66667c1834620c70b7902cd50f32ab48edd49fe0139"
#SOURCE_FILENAME="vim-$portVersion.tar.gz"

ARCHITECTURES="all !x86_gcc2"
SECONDARY_ARCHITECTURES="x86"

PROVIDES="
	nifskope$secondaryArchSuffix = $portVersion
	"

REQUIRES="
	haiku$secondaryArchSuffix
    lib:glm$secondaryArchSuffix
    lib:qhull$secondaryArchSuffix
    lib:zlib$secondaryArchSuffix
	"

BUILD_REQUIRES="
	haiku${secondaryArchSuffix}_devel
	devel:libqhull$secondaryArchSuffix
    devel:glm$secondaryArchSuffix
 	"

BUILD_PREREQUIRES="
        cmd:g++$secondaryArchSuffix
        cmd:make
        cmd:pkg_config$secondaryArchSuffix
        cmd:qmake$secondaryArchSuffix >= 5
        cmd:which
        "

BUILD()
{
	cp -r $sourceDir2/gli-0.8.2.0/gli/* $sourceDir/src/
    cp -r $sourceDir2/gli-0.8.2.0/external/glm/* $sourceDir/src/
	qmake
	make $jobArgs
}

INSTALL()
{
	make install
}

Lrrr · September 10, 2024, 4:52pm

The recipe file for qhull says that it provides lib:libqhull_r$secondaryArchSuffix and devel:libqhull_r$secondaryArchSuffix

DigitalBox · September 10, 2024, 4:56pm

Cool I wasn’t aware of this parameter indicating the exact name of the devel part.

Thanks !

DigitalBox · September 10, 2024, 5:16pm

Not yet working completely and still need some adjustements on the recipe file, but at least I’ve got a first version which is opening

DigitalBox · September 12, 2024, 9:51pm

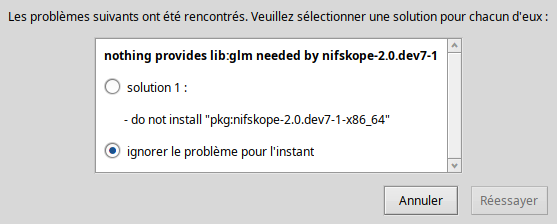

I currently have a .hpkg generated which is really a first step, however when trying to install it, I have the below error :

screenshot7

Any idea about what needs to be done ?

I have the below recipe file as latest attempt :

SUMMARY="Tool for opening and editing NIF files"
DESCRIPTION="NifSkope is a tool for opening and editing the NetImmerse file format (NIF). \
NIF is used by video games such as Morrowind, Oblivion, Skyrim, Fallout 3/NV/4/76, Starfield, \
Civilization IV, and more."
HOMEPAGE="http://www.niftools.org/"
COPYRIGHT="2016-2023 NifTools project"
LICENSE="Nifskope"
REVISION="1"
SOURCE_URI="https://github.com/DigitalBox98/nifskope/archive/refs/tags/v2.0.dev7.tar.gz"
CHECKSUM_SHA256="e6a3648ebe1a88e9c6b5f477c20d3b4e7ec016410119c3246f2fea96787ab3dc"
SOURCE_URI_2="https://github.com/g-truc/gli/archive/refs/tags/0.8.2.0.tar.gz"
CHECKSUM_SHA256_2="9e7024c2df77c011eff4f66667c1834620c70b7902cd50f32ab48edd49fe0139"
SOURCE_URI_3="https://github.com/qhull/qhull/archive/refs/tags/v8.1-alpha1.tar.gz"
CHECKSUM_SHA256_3="09e5e4c5b2b8a9e617a46876fef5a3d33e70aa1d08a163ff05d37701327c3be7"
SOURCE_URI_4="https://github.com/niftools/nifxml/archive/refs/tags/v0.9.0.tar.gz"
CHECKSUM_SHA256_4="984c247115bc49f90ded69b4c8feb9a62a0365ad53f5890312302b6a05bb4ed7"

ARCHITECTURES="all !x86_gcc2"
SECONDARY_ARCHITECTURES="x86"

PROVIDES="
	nifskope$secondaryArchSuffix = $portVersion
	app:NifSkope$secondaryArchSuffix = $portVersion
	"

REQUIRES="
	haiku$secondaryArchSuffix
    lib:glm$secondaryArchSuffix
    lib:qhull$secondaryArchSuffix
    lib:zlib$secondaryArchSuffix
    lib:libGLU$secondaryArchSuffix
    lib:libQt5Core$secondaryArchSuffix
    lib:libGL$secondaryArchSuffix
    lib:libz$secondaryArchSuffix
    lib:libQt5Network$secondaryArchSuffix
    lib:libQt5OpenGL$secondaryArchSuffix
    lib:libQt5Gui$secondaryArchSuffix
    lib:libQt5Xml$secondaryArchSuffix
    lib:libQt5Widgets$secondaryArchSuffix
	"

BUILD_REQUIRES="
	haiku${secondaryArchSuffix}_devel
    devel:glm$secondaryArchSuffix
	devel:libqhull_r$secondaryArchSuffix
    devel:libz$secondaryArchSuffix
    devel:libGLU$secondaryArchSuffix
 	"

BUILD_PREREQUIRES="
        cmd:g++$secondaryArchSuffix
        cmd:make
        cmd:pkg_config$secondaryArchSuffix
        cmd:qmake$secondaryArchSuffix >= 5
        cmd:which
        cmd:wget
        "

BUILD()
{
	cp -r $sourceDir2/gli-0.8.2.0/gli/* $sourceDir/src/
    cp -r $sourceDir2/gli-0.8.2.0/external/glm/* $sourceDir/src/
    cp -r $sourceDir3/qhull-8.1-alpha1/src/libqhull $sourceDir/src/
    mkdir -p $sourceDir/build/docsys/nifxml/
    cp $sourceDir4/nifxml-0.9.0/nif.xml $sourceDir/build/docsys/nifxml/
    mkdir -p $sourceDir/build/docsys/kfmxml/
    wget https://github.com/niftools/kfmxml/blob/develop/kfm.xml
    cp ./kfm.xml $sourceDir/build/docsys/kfmxml/
	qmake
	make $jobArgs
}

INSTALL()
{
	make install

	mkdir -p $appsDir
	cp $sourceDir/release/NifSkope $appsDir/
	cp $sourceDir/release/nif.xml $appsDir/
	cp $sourceDir/release/kfm.xml $appsDir/
}

Lrrr · September 12, 2024, 9:59pm

glm is a header only library and so there is no lib file to depend on. You can just remove the lib:glm$secondaryArchSuffix from the recipe but leave the devel:glm$secondaryArchSuffix line in place so that the headers can be found while building.

Also, you will probably need to change lib:qhull$secondaryArchSuffix to lib:libqhull_r$secondaryArchSuffix as I described in the previous post.
