I’ve been spending some time improving the arm64 port of Haiku with the goal of some day running Haiku on my M1 MacBook Air.

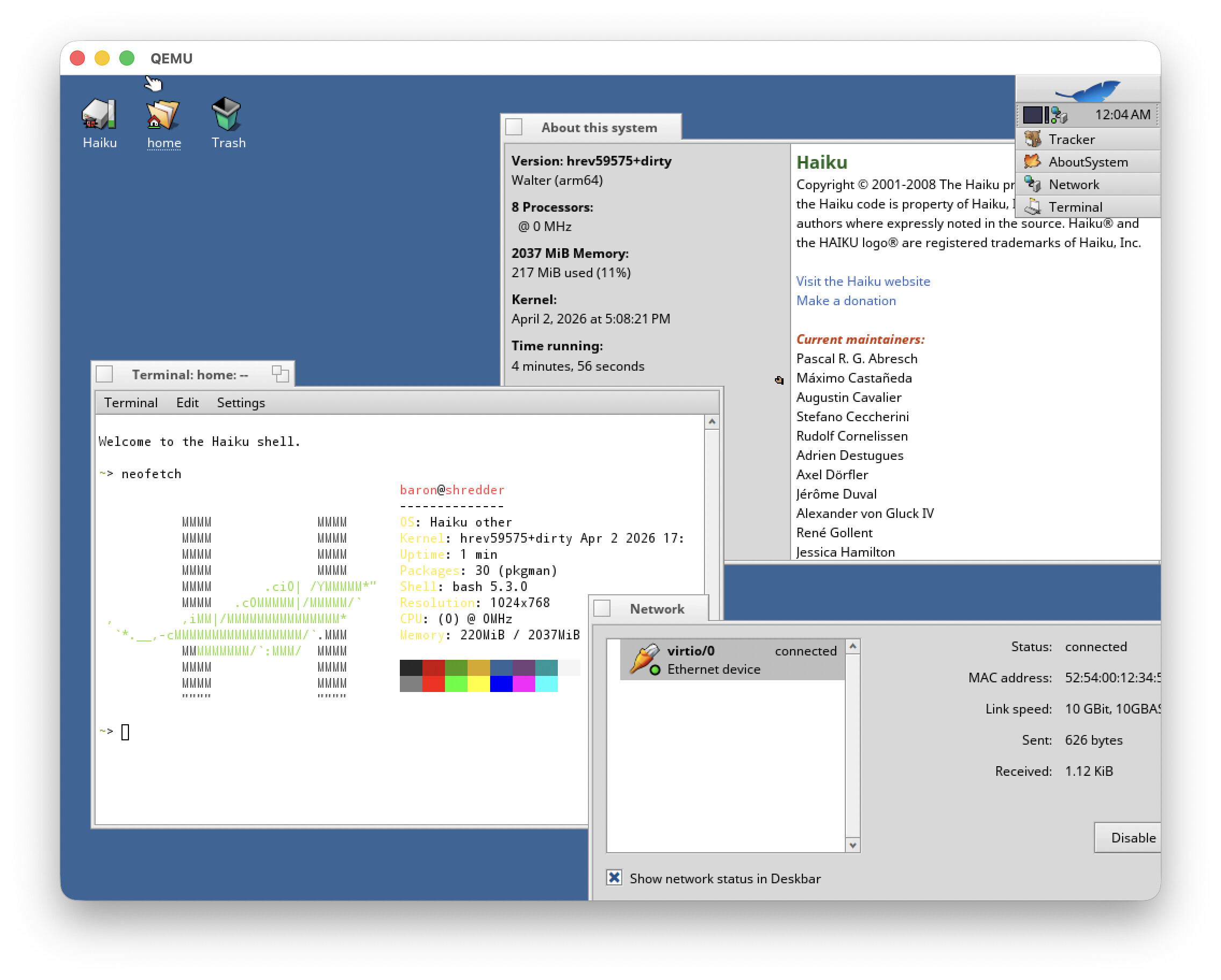

Here’s the current state of the port (in QEMU) as of hrev59575:

Haiku arm64 1
Haiku arm64 12272×1824 347 KB

The port is mostly stable and all of the usual QEMU devices (virtio SCSI, virtio net, xHCI USB) as well as up to 8 core SMP work as expected. Though there is at least one kernel crash and some double frees that need to be worked out.

There are also still some issues with software ports that need to be resolved, for example:

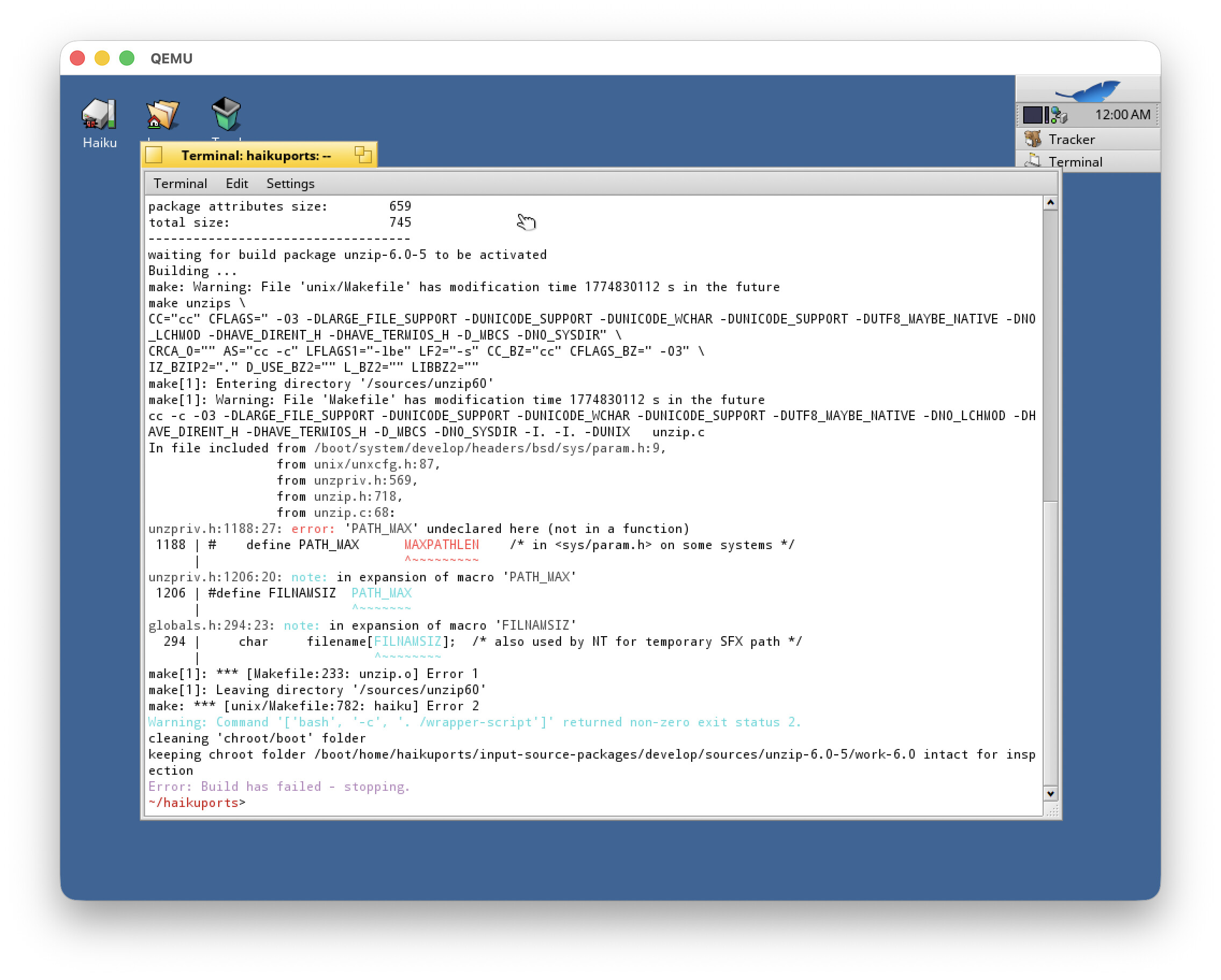

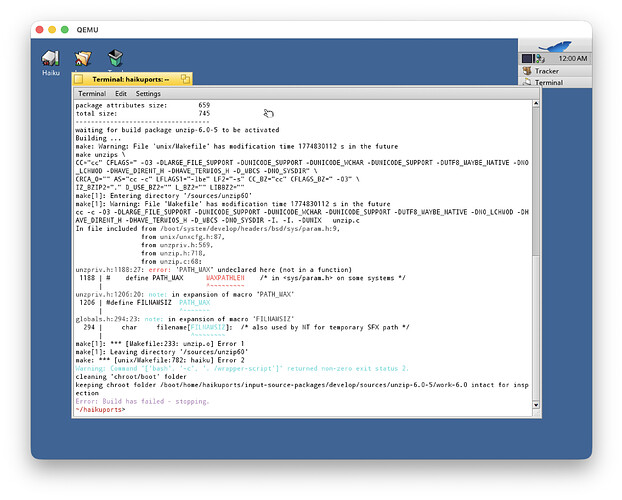

Haiku arm64 2
Haiku arm64 22272×1824 418 KB

If you want to try it yourself, you’ll need to bootstrap Haiku, since the binary packages currently used in the build process need to be rebuilt.

42 Likes
2

Is it you: https://review.haiku-os.org/q/owner:sam@smrobtzz.dev ?

3

Yes, that is me

4

Do you mean Haiku upstream or some additional patches are still needed? If second, what patches/branch is needed to apply to reproduce your result?

2 Likes
5

Awesome work… :man_mage: :sports_medal:

1 Like
6

I mean Haiku upstream. You may need to enable some extra features (e.g. the acpi add on and the zstd package) in the bootstrap image to get it to boot though

7

Awesome Work! I was wondering if you using cli emu or UTM which is using emu? Maybe worth creating an UTM image for easy download/install when things mature a bit?

there is also UTM for iOS devices :slight_smile:

1 Like
8

Ahoy @smrobtzz,

Actually I do not onw any arm64 device – any Apple M* or an SBC/laptop/keyboard computer with ARM64 CPU –, but I followed the patches from curiosity, so I was interested what is your status.

Seems arm64 attacked from 2 sides right now

–> first @dodo75 reported a running instrance on the forum, he targeted

an RPI 500+ device

–> and now you have a running Haiku 64 bit in QEMU (arm64) - targeted

Apple M* machines.

Interesting …

Wether these 2 development would be meet ?..

… or as vendors and architectures are different, so there will be 2 different install image for ARM64 Haiku ?

9

I’m using CLI QEMU. I’m probably not going to create a UTM-specific image, but the regular Haiku install image should work in UTM like any other OS

1 Like
10

Could you share an image so we could tinker with it?

1 Like
11

There are nightly images for arm64 here. They don’t work yet, but there should be working images in the next few weeks once some packages get rebuilt

6 Likes
12

This is so amazing, can’t wait to install it on my m1!

Kudos for the achievement!!!

1 Like
13

Haiku on M1 or M2 Mackbook would be sick … in a good way

2 Likes
14

I successfully “re-bootstrapped” the base package set and updated it in the build-packages repository. So after hrev59644, the ARM64 nightly images should (I hope) boot to the desktop in QEMU. At least I built a @minimum-mmc image and it booted for me:

image637×379 27.6 KB

Excellent work, @smrobtzz! :tada:

37 Likes
15

19 posts were split to a new topic: AI Build harness for ARM

16

I confirmed hrev59665 boots to desktop like this:

スクリーンショット 2026-04-29 9.07.24
スクリーンショット 2026-04-29 9.07.242370×1890 395 KB

Thank you @smrobtzz and other people for making ARM64 build testable like this! It is promissing. My main laptop is Apple silicon MacBook for a while, so running efficiently on it is important for me. Of course I can run it on x86_64 CPU emulation, but it is clearly slow.

Notice: following content is helped by LLM (Gemini), so please move this comment if this is a violation of forum’s AI guideline. I am not a expert of qemu’s options especially on aarch64 architecture, so exploring with LLM helped me a lot. Following content itself is written by me in poor English :expressionless:

My command line is

qemu-system-aarch64 \
  -M virt \
  -cpu max \
  -m 2G \
  -smp 4 \
  -bios /opt/homebrew/share/qemu/edk2-aarch64-code.fd \
  -device qemu-xhci,id=usb \
  -drive file=haiku-master-hrev59665-arm64-mmc.image,if=none,id=drv0,format=raw \
  -device usb-storage,bus=usb.0,drive=drv0 \
  -device usb-kbd,bus=usb.0 \
  -device usb-tablet,bus=usb.0 \
  -device ramfb \
  -display cocoa,zoom-to-fit=on \
  -serial stdio
  • acpi=off is required. without this boot image failed to find booting storage device this is not required when I retested some configs
  • (omitted) -smp 1 cannot be changed for now. SMP seems not working yet. No. This worked 2, 4, 8 processors when I retested as described in OP. sorry.
  • -cpu cortex-a57 didn’t work. this resuleted synchronization error on earlier boot stage.
  • boot storage device needs to be usb-storage for now. no one of the following did work:
    • virtio-blk-pci
    • virtio-blk-device
    • nvme
    • all of these failed to find a boot partition or resulted in synchronization error
  • virtio-gpu-pci also display desktop, but this doesn’t show boot indicators. this screen doesn’t support screen resolution change, so ramfb is good enough for now.

I tried to reproduce these configurations with UTM (Mac GUI), but I didn’t succeed to boot to desktop.

  • almost all of these points can be configured by GUI, but some arguments automatically added by GUI prevent to boot.
  • as far as I tried, UEFI firmware bundled with UTM isn’t compatible with Haiku, while EDK II (Tiranocore) firmware bundled Homebrew QEMU CLI works well.
14 Likes
17

Thanks for this tip, same here :slight_smile:

Capture d’écran 2026-04-29 à 07.56.49
Capture d’écran 2026-04-29 à 07.56.491258×986 75.2 KB

5 Likes
18

Feeling same vibes than when first BeOS for PowerPC version was booting running on mac hardware instead of (classic) macOS :slight_smile:

2 Likes
19

cries /half-joking
The main reason for supporting PPC would be that it might be fun. And I do see the point about arm32 being pretty weak as a desktop platform. However I do remember that the arm32 port at some point managed to boot to app_server (where it then crashed). I might try to look at what
caused that regression when I find time.

The latest build on download.haiku-os.org works (hrev59669)! For me, running it with

qemu-system-arm64 -m 512M -bios /path/to/the/arm64/QEMU_EFI.fd -device ramfb -M virt --cpu cortex-a76 -device usb-ehci -device usb-kbd -device usb-tablet -device usb-storage,drive=dska -drive id=dska,file=haiku-arm64-mmc.image,if=none

worked (for whatever reason, qemu uses some cpu that is incompatible with the efi implementation they ship, at least on debian. I just used usb for everything, as it’s used for keyboard and tablet (you could use a mouse aswell, but a tablet device saves you from requireing a mouse capture). ramfb is rather failsafe on arm64. On debian the path of the tianocore binary is /usr/share/qemu-efi-aarch64/QEMU_EFI.fd if you install the necessary package. On other systems it should be quite easy to find an efi image online or you could extract it from the debian package.
Everyone who got this ported, this is some awesome work! (And perhaps a reason why I should finally get myself a raspberry pi 3 or newer (or some other arm64 sbc) xD)

2 Likes
20

Just to clarify, I have nothing against these architectures if someone wants to work on them, and I may even work on them myself. It’s fun to do, the hardware is interesting to play with either because it’s simpler or because it’s old and quirky and unusual. But I don’t expect this is what will help Haiku find its success as a desktop operating system. I could be wrong. Prove me otherwise :smiley:

5 Likes
