Wacom digitizer topic - followup

Feedback Hardware
1

Hello everyone. As some of you might already know, I recently had problems with Haiku not using the Wacom digitizer in my HP Compaq TC4200 tablet PC from 2005. I did not resolve the issue, and I kinda accepted that Haiku probably doesn’t support it right now. I did get some hardware IDs via Windows XP and 7 if anyone that knows more about drivers and supported hardware is interested. I still don’t know how it is connected to the machine, tho.

2

Usually, there are three types of digitizers embedded in Tablet PCs:

  • USB
  • I2C
  • Serial

According to some sources, your device ID might be WACF006. I haven’t found this specific ID in the wiki of the Linux Wacom Project but the closest is WACF004 - Lenovo Thinkpad X61t which should be of type Serial.
I don’t think Haiku’s driver supports a serial connection to the digitizer.

3

I see, and now I understand. Thank you for telling that

4

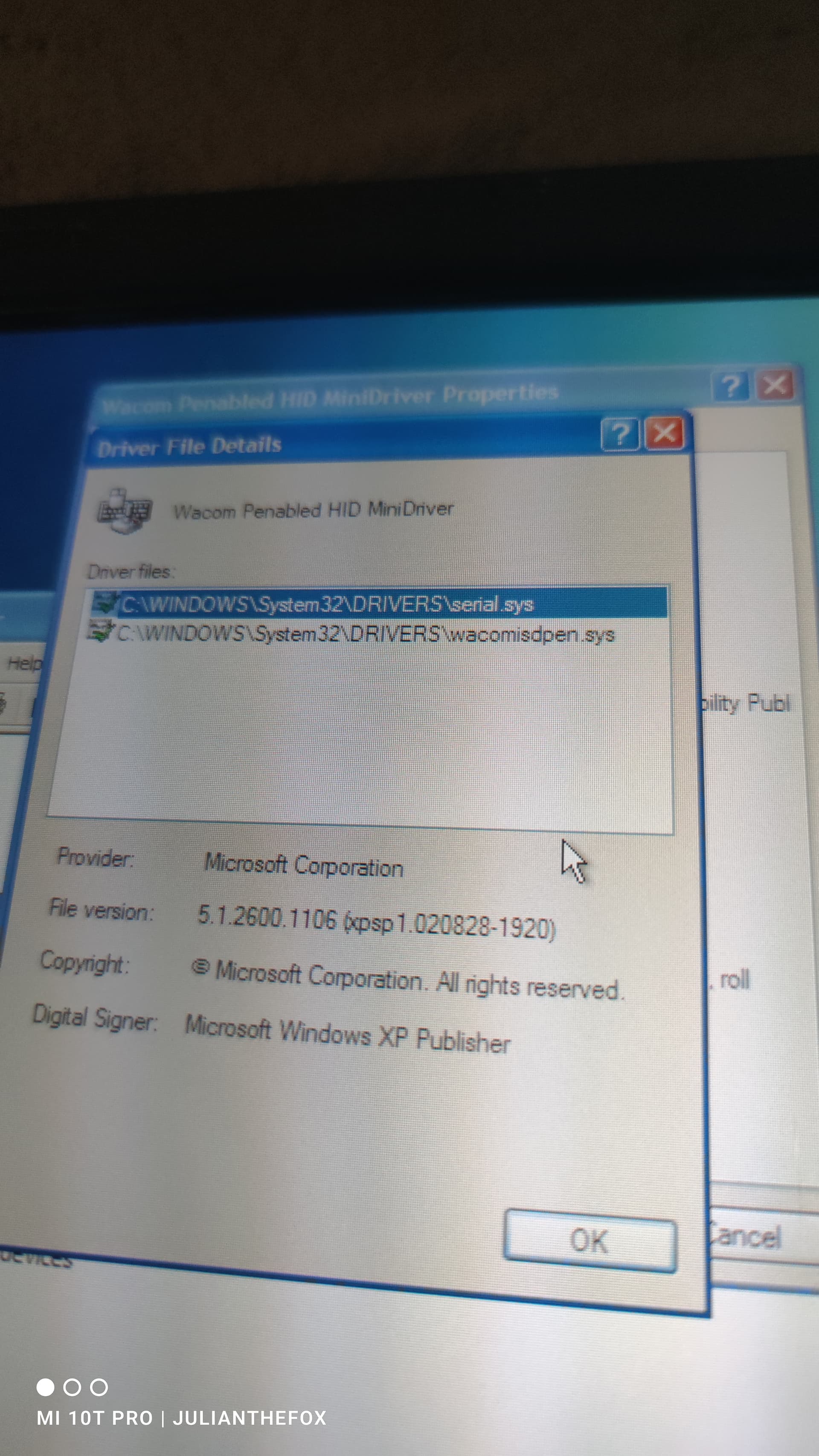

I decided to do some digging around in the Windows XP install on the hard drive of the machine, and, judging from the file names of the drivers, I think that the Wacom digitizer is connected via serial. I should also add that Windows says that it’s connected via a “extended IO bus”.

17547747214582773213913145472987
175477472145827732139131454729871920×3413 457 KB
