Hi, I’m creating icons for my refind theme, but I need a bit of help. I don’t understand how to get paths aligned exactly, I have adjacent shapes that share the exact same path coordinated, but the rendering looks crooked, as it is one blob further than it should be. I am using strokes, but in this case both shapes have the same stroke width, so i really am at a loss.

Note: I modified Icon-O-Matic to produce 256px PNG images, on smaller sizes this does not seem to occur or maybe not as much.

os_arch_64

os_arch_256

screenshot2

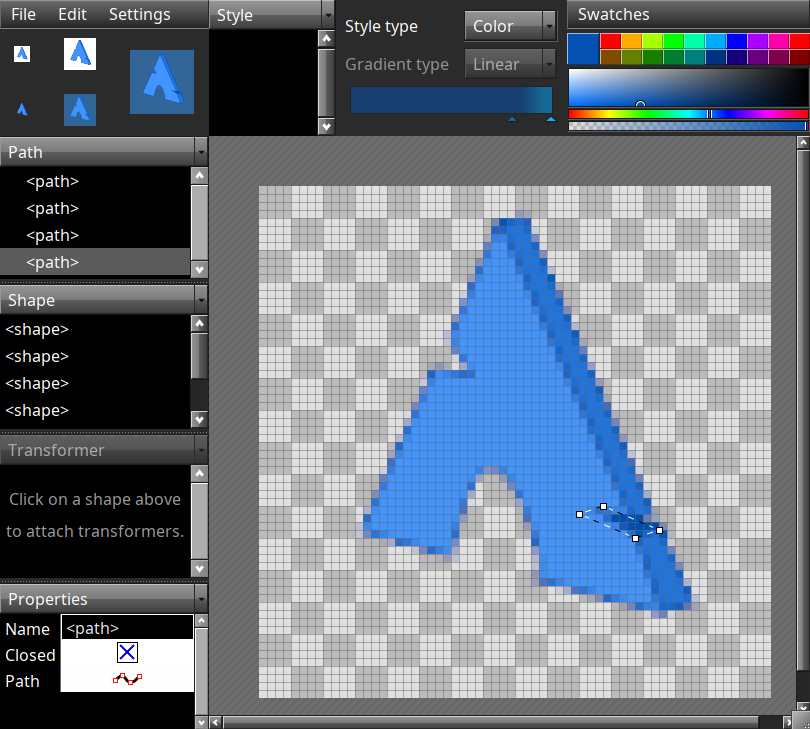

screenshot2810×729 61 KB

screenshot3
screenshot3810×729 61 KB

This forum does not let me upload IOM files or HVIF, could someone fix that please?

1 Like
2

There are two hints I can give you (if I understood your issue): use round caps instead of miter ones, or draw a separated path for the whole design, meant to have the outline , and use the front face and side without transformers
