DHMOControllook

Development
1

Hey, I’ve been working a bit on a “new” Controllook based internally on haikudecorator.
This one would be a bit more in the skewmorphism side, where flat decorator is on the other side of. And haikudecorator in the middle.

Is there interest for me to release this?

(DHMO ~ DiHydrogenMonoxide, a chemical name for water and a very funny “fake” conspiracy theory about DHMO which acompanies it)
Here are some screenshots

screenshot301
screenshot301724×691 37.7 KB
screenshot302
screenshot302724×691 34.4 KB

In some parts this controllook just reuses/exposes functionality already in HaikuControlLook. I am planning to change the scrollbar knob and drawing itself aswell though.

7 Likes
2

Nice. It already looks quite interesting. I can’t wait to have fun with it.

1 Like
3

Nice, if you could just reduce the gradients a bit on the menus they will look much nicer, they are quite visible. are the buttons slightly rounded or is it just my eyes playing a tricks on me?

4

Yes, they are.

5

But the menus aren’t! for the consistency they should too in my opinion.

6

Let him time to work on it. It’s only the beginning and menus a tricky part.

7

The only visual change compared to haikucontrollook yet is the rounded buttons and scrollbar aswell as the arrow color in the scrollbar.

I don’t see any menus in the screenshot?
anyhow the gradient currently matches HaikucontrolLook (bottom screenshot)
I will work on those a bit later, first I want to redo the scrollbar thumb.

8

I’ve been trying a bit to draw scrollbars and have hit a bit of a wall, my code doesn’t draw anything… and I am not sure why, I suppose I am doing something wrong : )

maybe someone could take a look?

void
DHMOControlLook::DrawScrollBarThumb(BView* view, BRect& rect,
	const BRect& updateRect, const rgb_color& base, uint32 flags,
	orientation orientation, uint32 knobStyle)
{
	if (!rect.IsValid() || !rect.Intersects(updateRect))
		return;

	BPoint points[3];
	float cornerInset = 2.0f;

	BShape shape;
	shape.MoveTo(BPoint(rect.RightTop().x - cornerInset, rect.RightTop().y));
	points[0].x = rect.top - cornerInset / 2;
	points[0].y = rect.right;
	points[1].x = rect.top;
	points[1].y = rect.right + cornerInset / 2;
	points[2].x = rect.top;
	points[2].y = rect.right + cornerInset;
	shape.BezierTo(points);
	shape.LineTo(BPoint(rect.RightBottom().x + cornerInset, rect.RightBottom().y));
	points[0].x = rect.bottom + cornerInset / 2;
	points[0].y = rect.right;
	points[1].x = rect.bottom;
	points[1].y = rect.right - cornerInset / 2;
	points[2].x = rect.bottom;
	points[2].y = rect.right - cornerInset;
	shape.BezierTo(points);
	shape.Close();

    view->SetHighColor(ui_color(B_SCROLL_BAR_THUMB_COLOR));
    view->MovePenTo(B_ORIGIN);
    view->FillShape(&shape);
}

I expect it to draw the right part of the scrollbar segment, but instead nothing is drawn at all. the area keeps the color of whatever was on screen before.

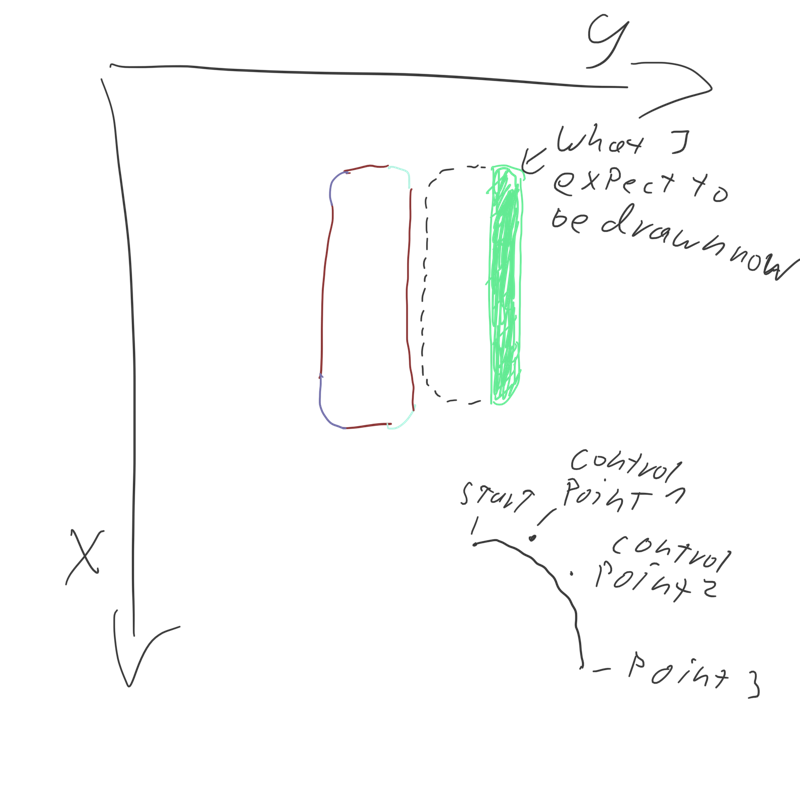

edit: this is my current understanding of the drawing system, and what i think my code should draw. perhaps it is wrong entirely

image800×800 90.6 KB

1 Like
9

all the ‘yes’ please :slight_smile:

10

screenshot322
screenshot322822×619 100 KB
screenshot324
screenshot324576×562 78.2 KB

2 Likes
11

Nice to see your progress on this. Now, arrow widgets are looking really squared in comparison but I don’t see how to make that better… I guess that next you want to make the thumb centred and perhaps a bit bigger?

12

Hmm, what do you mean by center the thumb?

13

Something like that… Sans titre

14

Ah, that wasn’t supposed to be a thum but a radial glow.
It’s going from a lightened color to transparent… So I have no idea where the black outline is coming from, this may be a bug

15

You may want to SetDrawingMode(B_OP_ALPHA) and have a look at different options for SetBlendingMode, if you haven’t already done so.

The default B_OP_COPY mode just puts the pixels in the destination, so when you are drawing a transparent pixel that’s what you get, and what you “see through it” is not what you already had drawn, but I guess the background colour or maybe whatever is under that view. B_OP_ALPHA does blend what you are drawing with what is already drawn.

Citing the Be Book for copy mode:

If the source image contains transparent pixels, their transparency will be retained in the result; the transparent value is copied just like any other color. However, the appearance of a transparent pixel when shown on-screen is indeterminate.

1 Like
16

Thanks, I’d not considered it. Sadly B_OP_ALPHA and SetBlendingMode don’t seem to be documented, but i’m used to sailing unfamiliar territory :smiley:

I think this already looks much nicer

screenshot325
screenshot325815×707 133 KB

1 Like
17

I’ve uploaded an early version for comments: https://review.haiku-os.org/c/haiku/+/6211

18

They are documented in the Be Book and I think also in the BeOS R5 or R4.5 release notes (included in some versions of the bebook, but not in the one we got from Access)

19

I can’t find B_OP_ALPHA or SetBlendingMode and the associated arguments in the BeBook, I can find the other Drawing modes though.
I had assumed this is a Haiku addition, but I don’t know that for sure.

20

https://www.haiku-os.org/legacy-docs/bebook/BView.html#BView_SetBlendingMode

1 Like
