My Haiku RISC-V port progress

libdebug.so and stack tracing from userland is working.

Debugger app can’t be compiled because libedit external dependency is missing.

screenshot59

17 Likes

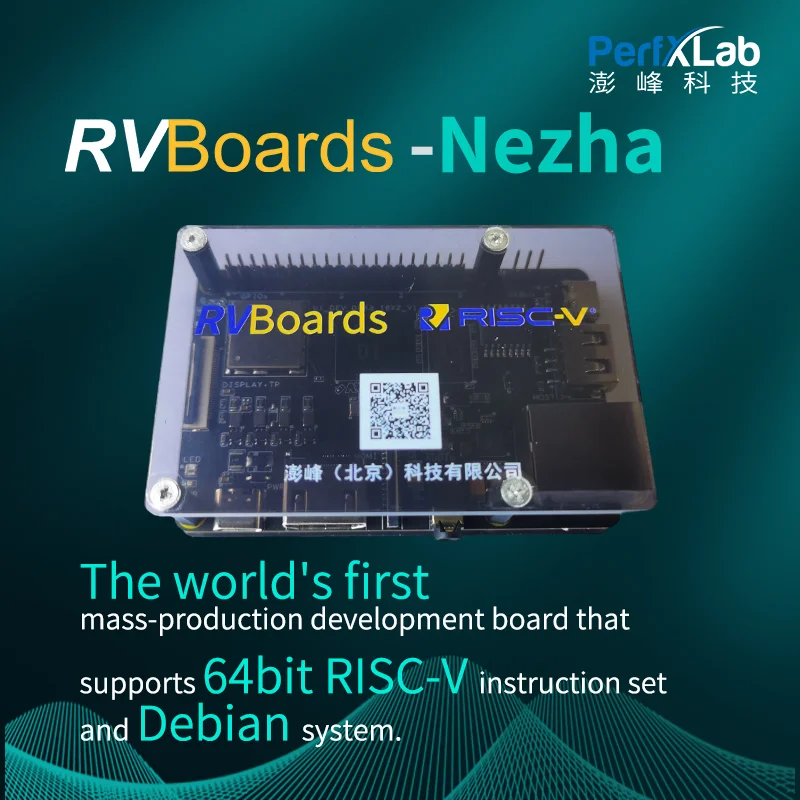

Same board is at Aliexpress:

1 Like

Technically Radeon HD cards should work on the SiFive unmatched under Haiku. Our mode setting driver for Radeon HD doesn’t need to rely on x86 bios services. (it might need some work though for locating the VGA bios, etc… but nothing major.)

Of course drm + 3d acceleration is the gold standard… but it might not be too much work to use AMD cards on RISC-V.

@X512, start getting some of these patches into https://review.haiku-os.org ! :smiley: I don’t think anyone has issues accepting a raw risc-v platform loader into our repos. We designed our boot loader to support lots of options. Even if the raw risc-v loader isn’t the default for risc-v in the future, having it is a great option.

6 Likes

Some patch splitting and debug code cleanup is needed. Currently most code is inside one big commit.

4 Likes

Speaking of…
SiFive HiFive Unmatched RISC-V Developer Boards Begin Shipping
https://www.phoronix.com/scan.php?page=news_item&px=SiFive-HiFive-Unmatched-Ships

1 Like

Hm… I have a mini-itx chassi that I don’t know what to do with… Perhaps I do soon :smiley:

This is great progress!

In case you want to test this in tinyemu on a recent macOS, the emulator is unable to display the graphics window due to an incompatibility of SDL1.2 with recent macOS versions.

Replacing the sdl.c source file in tinyemu with this one using SDL2 and changing the library to -lSDL2 in the Makefile fixes the problem.

2 Likes

Other changes are needed: utime CSR should be implemented (currently hardcoded to microseconds) and VirtIO queue may be need to be increased. Also keyboard scancodes may be different.

Try this fork with SDL2 support - GitHub - fernandotcl/TinyEMU: Tweaks to Fabrice Bellard's TinyEMU

3 Likes

Thanks @3dEyes - this version was the one I adapted the SDL2 code from. However, that doesn’t include X512’s patches and (at least for me) crashes into the kernel debugger when trying to boot Haiku.

I hacked together a quick tinyemu version with SDL2 support, (mostly correct, I think) keyboard mapping, POSIX microsecond timer support, and X512’s patches, see my github repository. Beware - only tested on macOS 11 so far.

1 Like

No free descs?

Nope, it’s an illegal instruction exception in system_time (see the attached screenshot) but I haven’t tried figuring out why this occurs in the fernandoctl version.

utime CSR register is not implemented in that fork: https://github.com/fernandotcl/TinyEMU/blob/master/riscv_cpu.c#L731. It is used for system_time(). Without that register the only way to get time will be mtime MMIO register of CLINT that can’t be efficiently provided for user mode.

5 Likes

I published current source code to GitHub - X547/haiku at riscv. History is currently a mess.

10 Likes

Done after bootstrapping on OpenSUSE:

24 Likes

Thank you, great job!

2 Likes

I can compile programs inside Haiku on RISC-V. riscv64 platform is displayed as unknown for some unknown reason.

screenshot68

26 Likes

Would be nice to see how fast it are on real hardware :slight_smile:

After recompiling libstdc++.so and libgcc_s.so.1 with built-in -fno-omit-frame-pointer I managed to get correct stack trace for crash caused by exception:

debug_server: Thread 863 entered the debugger: Debugger call: `abort() called'
stack trace, current PC 0xfffffff3fd8d9218  _kern_debugger + 0x8 (closest symbol):
  (0xfffffffdad039aa0)  0xffffffc4dbbcf454  uw_update_context + 0
  (0xfffffffdad039f80)  0xffffffc4dbbcfb36  _Unwind_RaiseException + 0x9c
  (0xfffffffdad03aa50)  0xffffffc4dbb31186  __cxa_throw + 0x42
  (0xfffffffdad03aa80)  0xfffffff45ef83b92  _ZN11BPackageKit8BManager8BPrivate18BRepositoryBuilder11AddPackagesENS_28BPackageInstallationLocationEPKc + 0x66
  (0xfffffffdad03aab0)  0xfffffff45ef805f0  _ZN11BPackageKit8BManager8BPrivate15BPackageManager27ClientInstallationInterface23InitInstalledRepositoryERNS2_19InstalledRepositoryE + 0x4a
  (0xfffffffdad03ab20)  0xfffffff45ef80bf0  _ZN11BPackageKit8BManager8BPrivate15BPackageManager23_AddInstalledRepositoryEPNS2_19InstalledRepositoryE + 0x1e
  (0xfffffffdad03ab70)  0xfffffff45ef82030  _ZN11BPackageKit8BManager8BPrivate15BPackageManager4InitEj + 0xfe
  (0xfffffffdad03ac30)  0xfffffff45ef6c956  _ZN11BPathFinder5SetToERKN11BPackageKit28BPackageResolvableExpressionEPKc + 0x78
  (0xfffffffdad03ae50)  0xffffffd976ef1dd0  main + 0x280
  (0xfffffffdad03afa0)  0xffffffd976ef20de  _start + 0x38
  (0xfffffffdad03afd0)  0xfffffff5e13ac6d4  runtime_loader + 0xd6
  (0xfffffffdad03b000)  0x803a1a94

uw_update_context seems not implemented in libgcc for riscv64:

  uw_update_context:
0000CCAE	80E7 0260 	JALR RA, abort (* !!! *)
0000CCB2	1101 	ADDI SP, SP, -32
0000CCB4	E822 	SD FP, 16(SP)
0000CCB6	E426 	SD S1, 8(SP)
0000CCB8	E04A 	SD S2, 0(SP)
0000CCBA	EC06 	SD RA, 24(SP)
0000CCBC	1000 	ADDI FP, SP, 32
0000CCBE	84AE 	MV S1, A1
0000CCC0	892A 	MV S2, A0
0000CCC2	0097 0000 	AUIPC RA, $00000000
0000CCC6	80E7 9680 	JALR RA, $0000C62A
0000CCCA	B783 4784 	LD A5, 1144(S1)
0000CCCE	4719 	LI A4, 6
0000CCD0	9693 0047 	SLLI A3, A5, 4
0000CCD4	94B6 	ADD S1, A3
0000CCD6	4494 	LW A3, 8(S1)
0000CCD8	9A63 00E6 	BNE A3, A4, $0000CCEC
0000CCDC	60E2 	LD RA, 24(SP)
0000CCDE	6442 	LD FP, 16(SP)
0000CCE0	3023 2209 	SD 0, 544(S2)
0000CCE4	64A2 	LD S1, 8(SP)
0000CCE6	6902 	LD S2, 0(SP)
0000CCE8	6105 	ADDI SP, SP, 32
0000CCEA	8082 	RET
7 Likes

Fullstack trace of iostream related crash:

vm_page_fault: vm_soft_fault returned error 'Bad address' on fault at 0x0, ip 0xfffffffdb874b12e, write 0, user 1, thread 0x1c9
STrap(exception loadPageFault)
  sstatus: (ie: {u, s}, pie: {s}, spp: u, sum: 1)
  sie: {sTimer, sExtern}
  sip: {}
  stval: 0x0
  tp: 0xcddab080(TrackerTaskLoop)
arch_thread_init_kthread_stack(0x00000000cdda7400(team 454 debug task))
arch_thread_init_kthread_stack(0x00000000cdda6e80(team 454 handler))
arch_thread_enter_uspace()
debug_server: Thread 457 entered the debugger: Segment violation
stack trace, current PC 0xfffffffdb874b12e  _ZN9__gnu_cxx18__exchange_and_addEPVii + 0x4a:
  (0xfffffff276242590)  0xfffffffdb874175c  _ZNSt6localeaSERKS_ + 0x40
  (0xfffffff2762425c0)  0xfffffffdb8740c90  _ZNSt8ios_base7_M_initEv + 0x38
  (0xfffffff2762425f0)  0xfffffffdb87902fe  _ZNSt9basic_iosIcSt11char_traitsIcEE4initEPSt15basic_streambufIcS1_E + 0x18
  (0xfffffff276242610)  0xffffffc8823cc890  _ZN8BPrivate16PlainTextCatalog12ReadFromFileEPKc + 0xbe
  (0xfffffff276243740)  0xffffffc8823cd95e  _ZN8BPrivate16PlainTextCatalogC2ERK9entry_refPKcj + 0x19c
  (0xfffffff276243990)  0xffffffc8823cdc6a  instantiate_catalog.localalias.23 + 0x3c
  (0xfffffff2762439c0)  0xffffffe34aaf9c56  _ZNK8BPrivate19MutableLocaleRoster11LoadCatalogERK9entry_refPKci + 0xee
  (0xfffffff276243b00)  0xffffffe34aaefeb6  _ZN8BCatalog5SetToERK9entry_refPKcj + 0x5c
  (0xfffffff276243b50)  0xffffffe34aaf0170  _ZN8BCatalogC2ERK9entry_refPKcj + 0x50
  (0xfffffff276243b90)  0xffffffe34aaf7a00  _ZN13BLocaleRoster20GetLocalizedFileNameER7BStringRK9entry_refb + 0xf2
  (0xfffffff276243c90)  0xffffffe33c96ce9a  _ZN8BPrivate5Model18CacheLocalizedNameEv + 0x34
  (0xfffffff276243cb0)  0xffffffe33c96d7b8  _ZN8BPrivate5Model14OpenNodeCommonEb + 0xf8
  (0xfffffff276243d20)  0xffffffe33c96d8fc  _ZN8BPrivate5Model8OpenNodeEb + 0x34
  (0xfffffff276243d40)  0xffffffe33c96dae8  _ZN8BPrivate5Model5SetToEPK6BEntrybb + 0x8c
  (0xfffffff276243d70)  0xffffffe33c96deca  _ZN8BPrivate5ModelC2EPK9entry_refbbb + 0x8e
  (0xfffffff276243e00)  0xffffffe33c97320e  _ZN8BPrivate13NodePreloader10PreloadOneEPKc + 0xec
  (0xfffffff276243f40)  0xffffffe33c97340c  _ZN8BPrivate13NodePreloader7PreloadEv + 0xd0
  (0xfffffff276243fb0)  0xffffffe33c9c1e3e  _ZN8BPrivate6Thread3RunEv + 0x14
  (0xfffffff276243fd0)  0xffffffe33c9c1e20  _ZN8BPrivate12SimpleThread9RunBinderEPv + 0xe
  (0xfffffff276243fe0)  0xffffffcc2770cfb6  thread_entry + 0x1e
  (0xfffffff276244000)  0x803a1aa4
